Thru Tubing Technology

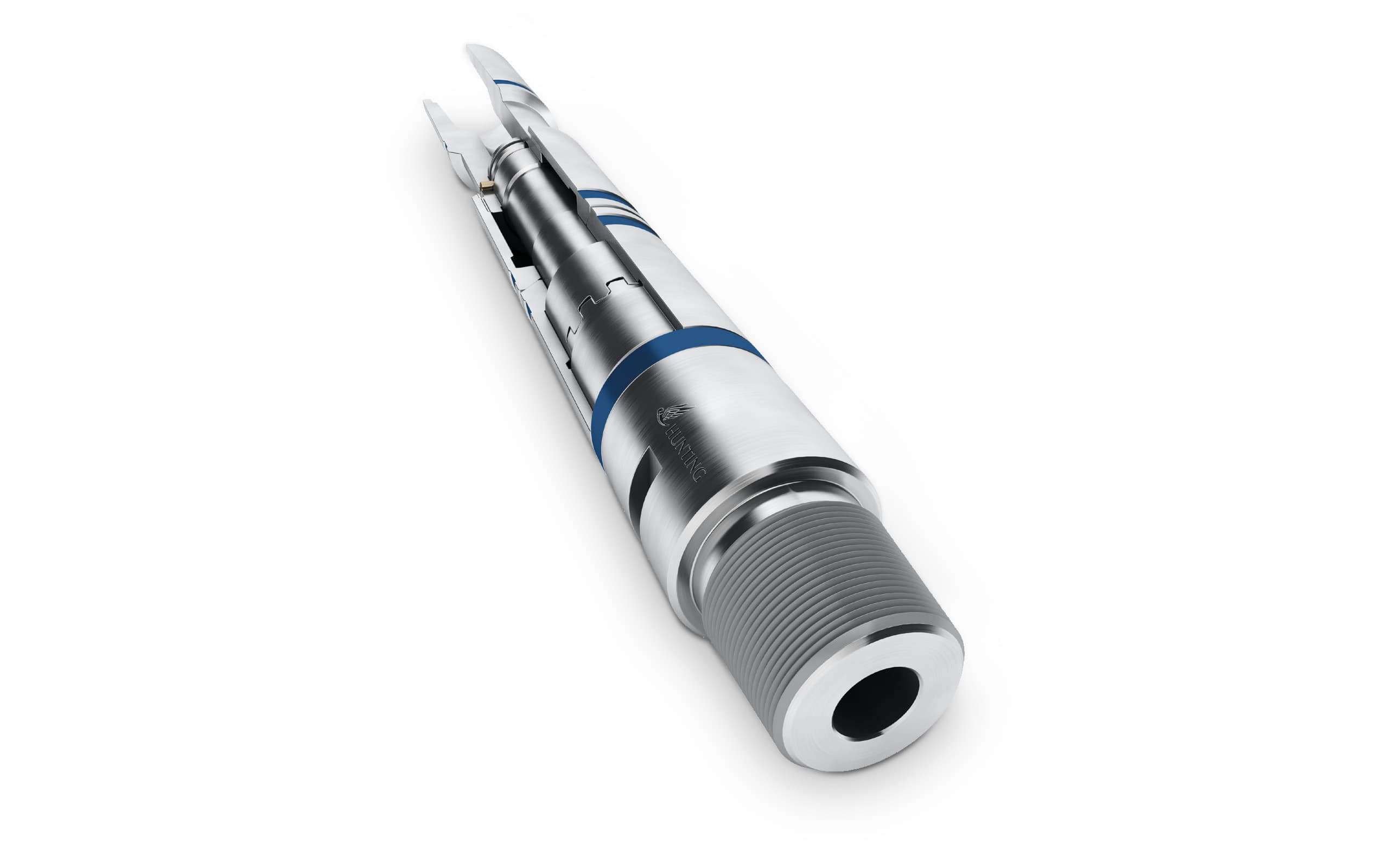

Torque Thru Quick Connector
The Torque Thru Quick Connector is a self-aligning tool string connector, capable of withstanding high degrees of torque in both directions. It eliminates the problems of connecting the coiled tubing when there is no means of rotating either the tubing or the BHA.
Product summary
The Torque Thru Quick Connector is a self-aligning tool string connector, capable of withstanding high degrees of torque in both directions. It eliminates the problems of connecting the coiled tubing when there is no means of rotating either the tubing or the BHA.
The Torque Thru Quick Connector locking taper feature allows each section of the tool string to simply 'stab-in' and centralise before the torque drive teeth positively engage into the female lower sub.
The primary locking collar is then screwed down to lock the two sections together. The secondary locking collar can then be screwed down to secure the joint and prevent the primary collar from backing off.
Available for completion string applications in numerous materials and with premium connections. Standard deployment sizes are listed below.
Features
Self-aligning tool string connector capable of withstanding high degrees of torque in both directions
Ideal for use in make up and running of velocity or gas lift strings
Eliminates the problems of connecting the BHA when there is no means of rotation
Simple robust design
Benefits
Field redressable
